pydecode.lp

Examples

import pydecode
import pydecode.test.utils as test_utils
import numpy as np

graph = test_utils.simple_hypergraph()
weights = np.random.randint(10, size=len(graph.edges))
pydecode.draw(graph, weights)

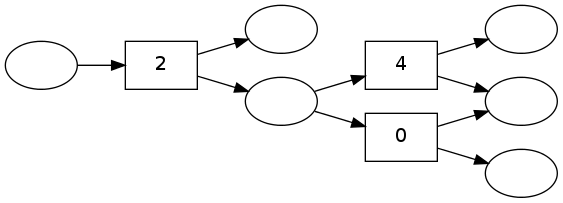

../../_images/lp_5_0.png
linear_program = pydecode.lp(graph, weights * 1.)
linear_program.solve()
pydecode.draw(graph, weights, paths=[linear_program.path])

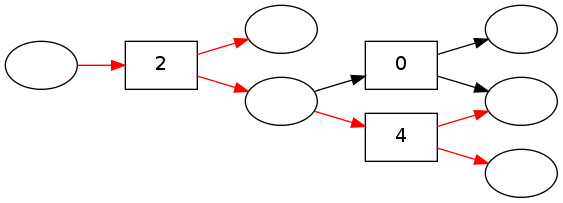

../../_images/lp_6_0.png
print linear_program.lp

Hypergraph Problem:
MAXIMIZE
4.0*edge_0 + 2.0*edge_2 + 0.0
SUBJECT TO
_C1: node_5 = 1

_C2: - edge_0 - edge_1 + node_4 = 0

_C3: - edge_2 + node_5 = 0

_C4: - edge_0 + node_0 = 0

_C5: - edge_0 - edge_1 + node_1 = 0

_C6: - edge_1 + node_2 = 0

_C7: - edge_2 + node_3 = 0

_C8: - edge_2 + node_4 = 0

_C9: - edge_2 + label_0 = 0

_C10: - edge_2 + label_1 = 0

_C11: - edge_2 + label_2 = 0

VARIABLES
edge_0 <= 1 Continuous
edge_1 <= 1 Continuous
edge_2 <= 1 Continuous
label_0 <= 1 Continuous
label_1 <= 1 Continuous
label_2 <= 1 Continuous
node_0 <= 1 Continuous
node_1 <= 1 Continuous
node_2 <= 1 Continuous
node_3 <= 1 Continuous
node_4 <= 1 Continuous
node_5 <= 1 Continuous

Invariants

Check that linear program always gives the same result as best path.

import numpy.testing as test
import pydecode.test.utils as test_utils
graph = test_utils.random_hypergraph()
weights = test_utils.random_weights(pydecode.LogViterbi, len(graph.edges))
best_path = pydecode.best_path(graph, weights)
best_path_score = best_path.v.T * weights

linear_program = pydecode.lp(graph, weights)
linear_program.solve()
assert linear_program.path == best_path
assert best_path_score == linear_program.objective
