Tutorial 1: FibonacciΒΆ

import pydecode
import numpy as np

We begin by looking at one of the simplest dynamic programming algorithm, generating a fibonacci sequence. While there are many ways to generate this sequence, the undelying dynamic programming algorithm acts as a nice base for introducing the central data structures in PyDecode.

The Fibonacci sequence is defined by the base case and recursions

\[\begin{split}C_0 &= 0 \\ C_1 &= 1 \\ C_i &= C_i + C_{i-1} \\\end{split}\]

The bottom-up algorithm for generating this sequence takes a simple form. We begin by initializing a chart with the base cases, and then loop over each item to specify the recurrence.

n = 10
chart = np.zeros(10)
chart[0] = 0
chart[1] = chart[0] + 1
for item in range(2, n):
    chart[item] = chart[item-1] + chart[item-2]
chart

array([  0.,   1.,   1.,   2.,   3.,   5.,   8.,  13.,  21.,  34.])

In PyDecode, a dynamic program is specified using a very similar bottom-up style.

  • To begin we we specify the set of items.
  • For the base cases we use init.
  • For recursion we use set or set_t.
  • For constants (like + 1) we use labels.
chart = pydecode.ChartBuilder(np.arange(10))
chart.init(0)
chart.set(1, [[0]], labels=[0])

for item in range(2, n):
    chart.set(item, [[item-1, item-2]])
graph = chart.finish()

Note that the second argument of set is a list of list. For Fibonacci we only pass a single list, but in the next section we will use the full functionality.

Once we have constructed a PyDecode graph we can run various computations over the dynamic programming structure. For instance we can compute the table of values as above.

weights = pydecode.transform(graph, np.array([1.0]))
inside = pydecode.inside(graph, weights)
inside

array([  0.,   1.,   2.,   4.,   7.,  12.,  20.,  33.,  54.,  88.])

But since we have this structure in memory, we can also visualize the computations that are occuring at each stage.

pydecode.draw(graph, np.array(["+"]*10), graph.node_labeling)
../_images/Fibonacci_12_0.png

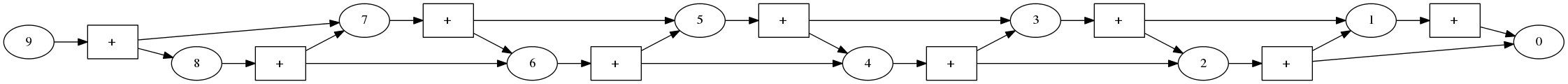

Here each oval vertex shows an item in the dynamic program, and each box vertex indicates which children are part of the recurrence. This data structure is known as a hypergraph and it is the central data structure used for the algorithms implemented in PyDecode. See Hypergraph for a full description of the data structure.

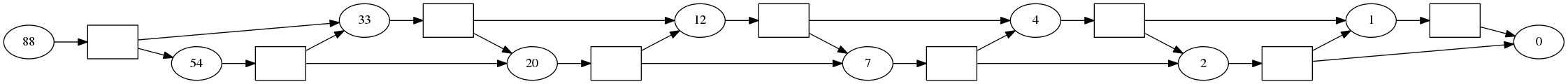

We can further add information to this graph. For instance we can easily overlay the chart of computed on stop of the computations. This provide a useful method for debugging the algorithm.

pydecode.draw(graph, vertex_labels=np.array(inside, dtype=np.int32))
../_images/Fibonacci_15_0.png

But visualizing computations is only one use of the library. In the next tutorial we’ll look at using PyDecode to efficiently compute other important values from a dynamic program.
