Tutorial 4: Dependency Parsing

import pydecode
import numpy as np
import matplotlib.pyplot as plt

kShapes = 2
Tri = 0; Trap = 1
kDir = 2
Right = 0; Left = 1

def eisner_first_order(n):
    coder = np.arange((kShapes * kDir * n * n), dtype=np.int64) \
        .reshape([kShapes, kDir, n, n])
    out = np.arange(n*n, dtype=np.int64).reshape([n, n])
    chart = pydecode.ChartBuilder(coder, out)

    # Add terminal nodes.
    chart.init(np.diag(coder[Tri, Right]))
    chart.init(np.diag(coder[Tri, Left, 1:, 1:]))

    for k in range(1, n):
        for s in range(n):
            t = k + s
            if t >= n:
                break

            # First create incomplete items.
            out_ind = np.zeros([t-s], dtype=np.int64)
            if s != 0:
                out_ind.fill(out[t, s])
                chart.set_t(coder[Trap, Left,  s,       t],
                            coder[Tri,  Right, s,       s:t],
                            coder[Tri,  Left,  s+1:t+1, t],
                            labels=out_ind)

            out_ind.fill(out[s, t])
            chart.set_t(coder[Trap, Right, s,       t],
                        coder[Tri,  Right, s,       s:t],
                        coder[Tri,  Left,  s+1:t+1, t],
                        labels=out_ind)


            if s != 0:
                chart.set_t(coder[Tri,  Left,  s,   t],
                            coder[Tri,  Left,  s,   s:t],
                            coder[Trap, Left,  s:t, t])

            chart.set_t(coder[Tri,  Right, s,       t],
                        coder[Trap, Right, s,       s+1:t+1],
                        coder[Tri,  Right, s+1:t+1, t])
    return chart.finish()

graph = eisner_first_order(4)

def ungrid(items, shape):
    return np.array(np.unravel_index(items, shape)).T

sentence = "fans went wild"
label_scores = np.random.random(4 * 4)
# scores = dp.output_matrix.T * output_scores
weights = pydecode.transform(graph, label_scores)
path = pydecode.best_path(graph, weights)
labels = np.array([edge.label for edge in path.edges])
ungrid(labels[labels != -1], (4, 4))

array([[0, 1],
       [3, 2],
       [0, 3]])

path = pydecode.best_path(graph, weights)
best = weights * path.v

edge_marginals = pydecode.marginals(graph, weights)
avg = np.sum(edge_marginals) / len(graph.edges)
thres = 0.4 * best + 0.6 * avg
edge_filter = np.array(edge_marginals >=thres, dtype=np.uint8)
pruned_hyper = pydecode.filter(graph, edge_filter)

mat = pydecode.inverse_transform(graph, edge_marginals, size=(4*4))

array([ -1.00000000e+09,   2.39736353e+00,   2.31316550e+00,
         2.39736353e+00,  -1.00000000e+09,  -1.00000000e+09,
         2.17027452e+00,   2.11240168e+00,  -1.00000000e+09,
         2.33194419e+00,  -1.00000000e+09,   2.27204940e+00,
        -1.00000000e+09,   2.09714112e+00,   2.39736353e+00,
        -1.00000000e+09])

mat= mat.reshape((4,4))
plt.pcolor(mat.T)
plt.yticks(np.arange(0.5, len(sentence.split()), 1), ["*"] + sentence.split())
plt.xticks(np.arange(0.5, len(sentence.split()), 1), ["*"] + sentence.split())
None

import pydecode.display
class ParseFormat(pydecode.display.HypergraphPathFormatter):
    def graph_attrs(self):
        return {"rankdir": "TB", "clusterrank": "local"}
    def hypernode_attrs(self, vertex):
        label = self.vertex_labels[vertex.id]
        return {"image": "images/" +
                ("triangle" if label[0] == Tri else "trap") + "-" +
                ("right" if label[1] == Right else "left") + ".png",
                "labelloc": "t",
                "shape": "rect",
                "style" : "dashed",
                "label": "%d-%d"%(label[2], label[3])
                if label[2] != label[3] else
                (["*"] + sentence.split())[label[2]],

                }
    def hypernode_subgraph(self, vertex):
        label = self.vertex_labels[vertex.id]
        if label[2] == label[3]:
            return [("clust_terminals", label[2] + (0.5 if label[1] == Right else 0))]
        return []
    def subgraph_format(self, subgraph):
        return {"rank": "same"}
    def hyperedge_node_attrs(self, edge):
        return {"shape": "point"}
    def hyperedge_attrs(self, edge):
        return {"arrowhead": "none",
                "color": "orange" if edge in self.paths[0] else "black",
                "penwidth": 5 if edge in self.paths[0] else 1}

vertex_labels = ungrid(graph.node_labeling, shape=[kShapes, kDir, 4, 4])

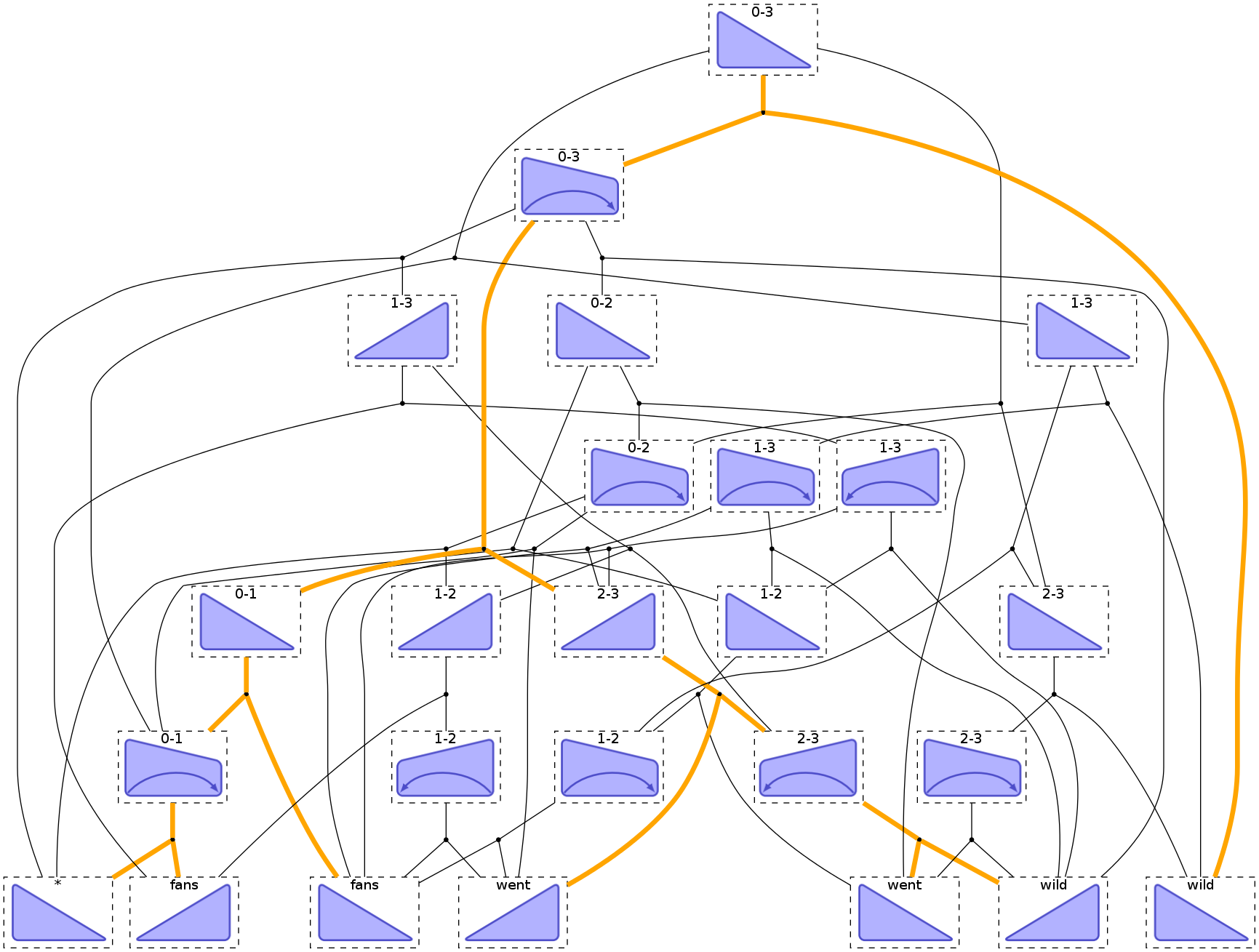

pydecode.draw(graph, None, vertex_labels, paths=[path], formatter=ParseFormat())
# ParseFormat(graph,
#             vertex_labels=vertex_labels).set_paths([path]).to_ipython()
