Tutorial 2: Edit DistanceΒΆ
In this tutorial, we look at a more substantial dynamic programming problem: computing the edit distance between two strings. In this notebook, we show how to
- Construct a dynamic program.
- Assign scores to labels.
- Compute max-marginal values.
We beging by importing the standard libraries.
import pydecode
import numpy as np
import matplotlib.pyplot as plt
Edit distance is computes the score of the best alignment two strings. An alignment consists of a sequence of single operations
- Insert : Generate a character only in the first string.
- Delete : Generate a character only in the second string.
- Match : Generate the same character in both string.
For a detailed overview of the edit distance problem, see the wikipedia article on Levenshtein distance.,
We begin by defining the basic operations available for edit distance, and giving the dynamic program for edit distance.
kInsert, kDelete, kMatch = 0, 1, 2
operations = np.array([kInsert, kDelete, kMatch])
offsets = np.array([[1,0], [0,1], [1,1]])
op_names = np.array(["<", ">", "="])
def grid(m, n, o=None):
if o is None:
return np.arange(m * n).reshape((m, n))
else:
return np.arange(m * n * o).reshape((m, n, o))
grid(5,5)
array([[ 0, 1, 2, 3, 4],
[ 5, 6, 7, 8, 9],
[10, 11, 12, 13, 14],
[15, 16, 17, 18, 19],
[20, 21, 22, 23, 24]])
In this tutorial we will take advantage of a numpy trick to covert indices back into their grid coordinates.
def ungrid(items, shape):
return np.array(np.unravel_index(items, shape)).T
ungrid([1, 2, 3, 4], (5, 5))
array([[0, 1],
[0, 2],
[0, 3],
[0, 4]])
Edit distance is defined by the following base case and recursions
def edit_distance(m, n):
# Create a grid for the items and labels.
item_grid = grid(m, n)
op_grid = grid(m, n, len(operations))
c = pydecode.ChartBuilder(item_grid)
# Construct the base cases.
c.init(item_grid[0, 0])
c.init(item_grid[0, 1:])
c.init(item_grid[1:, 0])
# Construct the recursion.
for i in range(1, m):
for j in range(1, n):
c.set(item_grid[i, j],
[[item_grid[i-1, j]],
[item_grid[i, j-1]],
[item_grid[i-1, j-1]]],
[op_grid[i-1, j, kDelete],
op_grid[i, j-1, kInsert],
op_grid[i-1, j-1, kMatch]])
return c.finish()
graph = edit_distance(3, 3)
To get a better sense of this dynamic program, we can visualize its structure.
# Construct readable labels for each of the vertices and edges in the graph.
label_names = ungrid(graph.node_labeling, (3,3))
label_ops = op_names[ungrid(graph.labeling, (3,3,3))[:, 2]]
pydecode.draw(graph, label_ops, label_names)
# hyperedge_labels = op_names[pydecode.hyperedge_outputs(dp)[2]]
# display.HypergraphFormatter(dp.hypergraph, vertex_labels=vertex_labels, hyperedge_labels=hyperedge_labels).to_ipython()
This structure can then be used for queries about the underlying strings. First, we might ask what the best alignment is between the two strings. To do this, we need to assign as score to each output in the dynamic program. Each of these outputs corresponds to choosing an operation at each of the position pair.
Let’s give all operations a score of zero, except for Match which can only be applied when we have a direct match.
def make_scores(string1, string2):
m, n = len(string1), len(string2)
scores = np.zeros((m, n, 3))
for i, s in enumerate(string1):
for j, t in enumerate(string2):
scores[i, j, kMatch] = 1.0 if s == t \
else -1e8
return scores
string1, string2 = "aab", "aac"
scores = make_scores(string1, string2)
weights = pydecode.transform(graph, scores)
Finding the best alignment is simply a matter of calling the argmax function. This retuns the best outputs under our scoring function. We can then transform these into an easier to view format.
path = pydecode.best_path(graph, weights)
ungrid([edge.label for edge in path.edges], (3,3, 3))
ungrid([node.label for node in path.nodes], (3,3))
array([[0, 0],
[1, 1],
[2, 2]])
chart = np.zeros((3,3))
best = ungrid([node.label for node in path.nodes], (3,3))
chart[best.T[:2][0], best.T[:2][1]] = 1
plt.pcolor(chart)
plt.yticks(np.arange(0.5, len(string1), 1), string1)
plt.xticks(np.arange(0.5, len(string2), 1), string2)
None

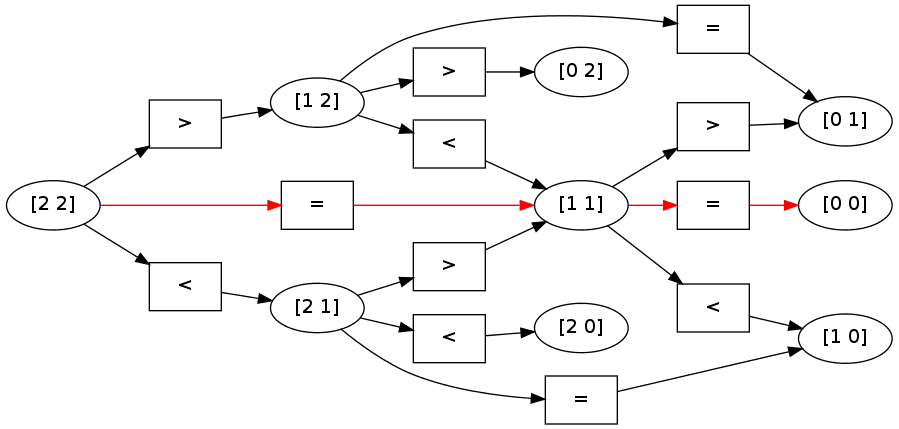

Furthermore, we can map these scores directly onto the hypergraph, to see which path was chosen as the highest scoring.
pydecode.draw(graph, label_ops, label_names, paths=[path])
Another common query is for the max-marginals of a given dynamic program. The max-marginals given the highest scoring alignment that uses a particular item or output in the dynamic program. These can be very useful for pruning, training models, and decoding with partial data.
np.max(graph.labeling) +1
22
graph.labeling
array([ 4, 9, 2, 7, 12, 5, 13, 18, 11, 16, 21, 14], dtype=int32)
edge_max_marginals = pydecode.marginals(graph, weights)
label_max_marginals = pydecode.inverse_transform(graph, edge_max_marginals,
size=3*3*3)
label_max_marginals = label_max_marginals.reshape(3,3,3)
[[ 2.00000000e+00 1.00000000e+00 -1.00000000e+09]
[ 1.00000000e+00 2.00000000e+00 -1.00000000e+09]
[ -1.00000000e+09 -1.00000000e+09 -1.00000000e+09]]
plt.imshow(label_max_marginals[:,:, kMatch])
plt.yticks(np.arange(1.5, len(string1)), string1)
plt.xticks(np.arange(1.5, len(string2)), string2)
None
Finally we look at a longer alignment example.
# strings = np.array(["hllo this is a longer sequence",
# "hello ths is a longr seqence"])
# dp = edit_distance(strings)
# output_scores = make_scores(strings, dp.outputs)
# best = pydecode.argmax(dp, output_scores)
# chart = np.zeros(dp.items.shape)
# chart[best.T[:2][0], best.T[:2][1]] = 1
# plt.imshow(chart)
# plt.yticks(np.arange(1.5, len(strings[0])+1, 1), strings[0])
# plt.xticks(np.arange(1.5, len(strings[1])+1, 1), strings[1])
# None
