pydecode.draw

Example

import pydecode
import pydecode.test.utils
import numpy as np
graph = pydecode.test.utils.random_hypergraph(5)
words = np.array("it was the best of times it was the worst of times".split())
edge_labels = words[np.random.randint(words.shape[0]-1, size=len(graph.edges))]

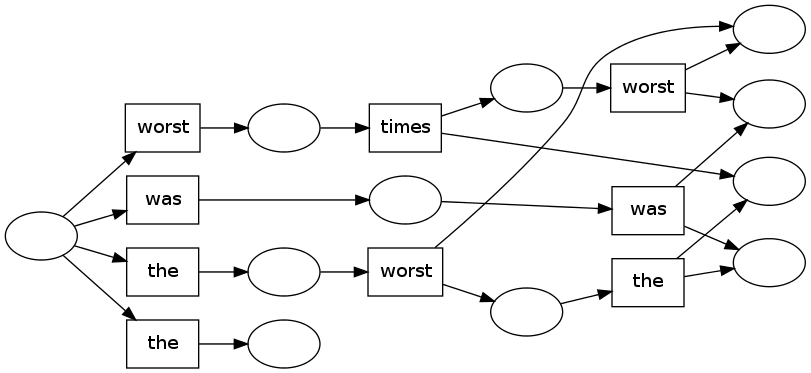

pydecode.draw(graph, edge_labels)

path1 = pydecode.test.utils.random_path(graph)
path2 = pydecode.test.utils.random_path(graph)
path3 = pydecode.test.utils.random_path(graph)
pydecode.draw(graph, edge_labels, paths=[path1, path2, path3])

Custom formatters inherit from HypergraphFormatter in pydecode.display. These allow you to specify GraphViz properties directly.

from pydecode.display import HypergraphFormatter
class MyFormatter(HypergraphFormatter):
    def graph_attrs(self):
        return {"rankdir": "TB"}
    def hypernode_attrs(self, vertex):
        return {"shape": "point"}
    def hyperedge_node_attrs(self, edge):
        label = "%s"%(self.edge_labels[edge.id])
        if label[0] == "w":
            color = "blue"
        else:
            color = "pink"
        return {"shape": "circle",
                "color": color,
                "label": label}

pydecode.draw(graph, edge_labels, formatter=MyFormatter())
